From - $1401.25 Extra remotes and options available online.

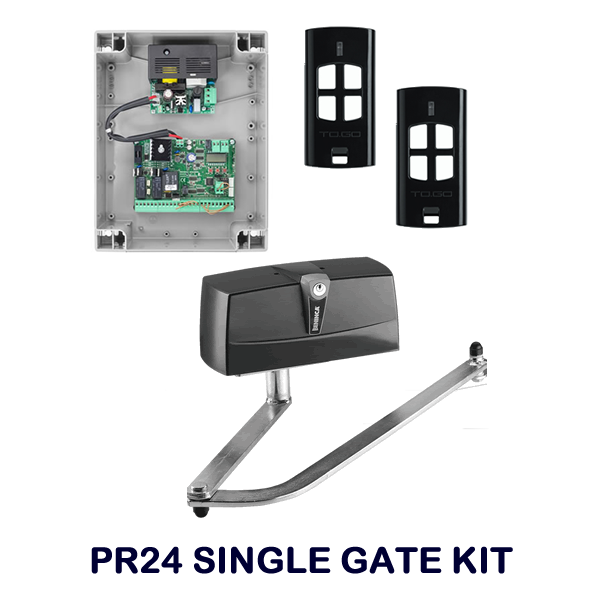

INCLUDED IN THIS KIT
- One PR24
- Beninca BRAINY Logic Control
- Two Beninca remote control transmitters
24 VOLT ELECTRIC SWING GATE OPERATOR - RESIDENTIAL - 3.0 METRE LEAF
The PR24 is an articulated arm operator and is suitable for gates to 3.0 metres wide.
Manufactured in Italy by Beninca the PR24 is a harmonic style or articulated 24 volt swing gate electro mechanical operator suitable for gates to 3.0 metres wide. It is a non reversible operator with manual override key and limit switches. One of the benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override. This style of swing gate operator demands strong components and as always Beninca have over engineered with the use of tempered steel prominent.
The PR24 is best married to the BENINCA control board commonly called "Brainy". Brainy has a full host of functions to give total control over performance and slow down functions. Available as the PR24 operator only for use with existing or other control systems the PR24 also comes as a kit with two operators, Brainy logic control and two remote controls.
Manufactured in Italy by Beninca the PR24 is a harmonic style or articulated 24 volt swing gate electro mechanical operator suitable for gates to 3.0 metres wide. It is a non reversible operator with manual override key and limit switches. One of the benefits of the 24 volt motor is the ability to use battery backup meaning you may never have to use the manual override. This style of swing gate operator demands strong components and as always Beninca have over engineered with the use of tempered steel prominent.
The PR24 is best married to the BENINCA control board commonly called "Brainy". Brainy has a full host of functions to give total control over performance and slow down functions. Available as the PR24 operator only for use with existing or other control systems the PR24 also comes as a kit with two operators, Brainy logic control and two remote controls.
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
0mA
Current at use -
9.0A
Maximum thrust -
320Nm
Opening Time 90 degrees -
9 seconds
Maximum gate width -
3000 mm
Duty cycle -
80%
Height -
160mm
Width -
332mm
Length -
165mm
Weight -
13 Kg
IP rating -
IP44
