From - $857.86 Extra remotes and rack available online.

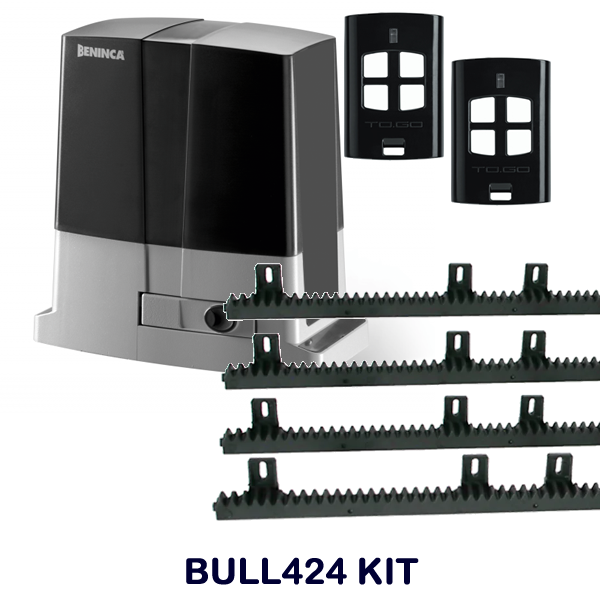

When you look for reliability in and automatic gate motor you have to look at anything Beninca and the BULL sliding gate openers are no exception. The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 400kg in weight.
24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 400KG
The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 400kg in weight.
24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.3 Ah) | Anti-crushing system with amperometric obstacle detection.
The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries. The BULL424SW can also be powered by solar.
24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.3 Ah) | Anti-crushing system with amperometric obstacle detection.
The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries. The BULL424SW can also be powered by solar.
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
8mA
Current at use -
3.2A
Motor power -
80W
Torque -
12Nm
Operating speed -
11 metres per minute (adjustable)
Maximum gate size -
400 kg
Duty cycle -
80%
Height -
330mm
Width -
326mm
Depth -
140mm
Weight -
10.2 Kg
IP rating -
IP44
